New Features in ATS CM4D v20



Download in PDF format

v20.4.0

Chart Shading for Limit Lines


Styles for Chart or Graph plot space lines have been enhanced to allow you to alter the appearance of the space between limit lines. This new style can help you to identify the Spec Limits of the chart at a glance. Instead of only having lines to indicate spec limits, you can now apply a brush style that fills the space between the lines (or, in the case of unilateral spec limits, from the line to the edge of the plot space).

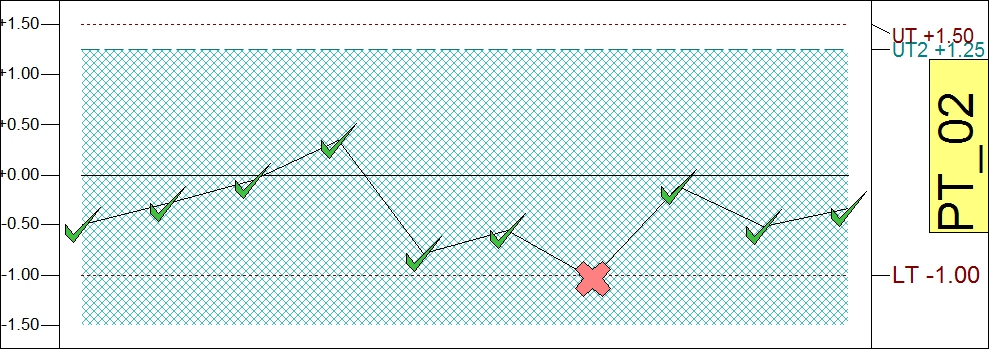

In the example below, a Trend Chart has been configured to appear green in between the Upper and Lower Spec Limit (or Tolerance) lines. This is achieved by assigning a Brush color to the Spec Limit lines in the Main Plot Space properties. You can also apply a Hatch pattern to the brush color to achieve a sort of “transparent” color (in the image below, the area outside the Tolerance area is Red Hatch – Diagonal Cross).



Another use of the Brush property with Limit Lines is to easily display both Spec Limit and Spec Limit 2. If you used two marker types for the two spec limits, one may cover the other if the same point meets both specification limts. However, now you could set up Spec Limit to be identified using a Marker, with Spec Limit 2 set to be identified by the shading. In the image below, Spec Limit (a Bilateral Tolerance) is the red x, while Spec Limit 2 (a Unilateral Tolerance) is indicated by the light teal hatching in the background. Using these properties, you can easily see where your data falls for both Spec Limits.



The Brush style can be applied to any of the Limit Lines, as well as User-Defined Lines. For User-Defined lines, the brush will only be applied when there are exactly two (2) User-Defined lines. If there are more or less than 2 lines, the Brush property will not be applied.

2. Benchmark Graph Performance


The performance of Chart and Graph annotation in CM4D has been improved. The most noticeable performance increase is with Benchmark graphs. In addition to the general performance improvement, Benchmark graphs can use a new Resolve option for Scores that can potentially decrease the time it takes to resolve your data.

The enhancement has been made to the way variables are resolved in the Scores that are used with Benchmark graphs. A new option has been added to the Score Bin properties that will assume that the bin boundary variable would resolve the same information for every cell in the DataSet row, so it does not need to resolve every cell in that row. If the Score Resolve is enabled, the variable is only resolved for the first cell in the row, thereby saving time when displaying Benchmark graphs in a report.

However, you must decide when or if this should be used. The following four scenarios may help you to understand when the Score Resolve option with a Benchmark could be used.

Scenario Data Setup Result

1. Example Score: Cpk - “Cpk” Score is fully constructed with the “Build Examples” button in Document Scores.
- Score Bins use numbers (integers) as the bin Boundaries. For example, Score Bin “1.33” Value text for bin boundary: 1.33

Score Resolve option will not have any effect on resolve times.Scores using integers typically resolve faster than variables anyway, since all cells in the row already use the same boundary value.

2. Example Score: TolEval - “TolEval” Score is fully constructed with the “Build Examples” button in Document Scores.
- Score Bins use variables as the bin Boundaries. For example, Score Bin “Near Above” Value text for bin boundary: {~ut~*0.8}
- Tolerance does not typically change within a DataSet row.

Score Resolve option may be used, and may result in a significant improvement for resolve times.

3. Data Changes from Cell to Cell - Score Bins use variables as the bin Boundaries.
- Variables used will return data that may change from one cell to the next within the DataSet row.

Score Resolve option should not be used.

4. Tolerance Changes from Cell to Cell - Score Bins use a Tolerance variable as the bin Boundaries.
- For example, Value text for bin boundary: {~ut~}
- If you have a Process Change, tolerance could change from one cell to the next.
Score Resolve option may be used, and may result in a significant improvement for resolve times. Since Benchmarks only calculate on the current Process, the Tolerance will not change within the row being calculated.


The Score Resolve option is not enabled by default, so any current Benchmark graphs will only be partially enhanced by the overall performance improvements. If you want to use the new Resolve option, you will need to edit any existing Scores used for Benchmarks that are suitable for this method of Resolve. Remember that you can use the Export/Import Scores option to copy updated Scores between documents.

The Score Resolve option only applies to Benchmark graphs that use a DataSet as a DataSource. It does not apply to DataStacks with the Benchmark Evaluation type. If a Score with Resolve enabled is used with any annot other than Benchmarks, the Score Resolve option will not be applied.

How can you tell if there were improvements to your Benchmark graphs?
Try the following:
  1. Compare the same document using Benchmarks in both your current version and in v20.4.0.
  2. In v20.4.0, compare the resolve time of your Benchmarks using the Score with or without the Score Resolve option enabled.

  3. Keep in mind that when you first open a document, the DataSources will take time to resolve initially. Once the DataSources have been resolved once, the DataSources used by the DataSets should already be resolved, and you can compare the second resolve for the actual resolve time for the Benchmark graphs.

    New CM4D Color: Orange


    Orange and Light Orange are now available in CM4D Classic for Annotation Styles.











    v20.3.0

    Internal Scripting

    Internal Scripting capabilities have been added that allows you to write scripts using the Visual Basic or C# programming languages to create functions and procedures to automate things such as creating DataSets, modifying templates, and loading data. In addition to general program functionality, access to the CM4D API is available.

    CM4D has no control over what can be done with a script, so it is possible that you could end up writing scripts that lock up, crash, or otherwise disable CM4D. ATS maintains no responsibility for any scripts that you write so exercise caution and be aware of what is being done with your scripts.

    To use scripting, you must have:
    • Site Database
    • Script User Privileges

    Scripts are controlled by assigning user Privileges in SiteManager. What users can do with scripts, and at what level, is all managed by the ‘Script Administrator’. To avoid security issues with macros saved in documents, CM4D scripts are only stored in the Site Database.

    Existing external scripts may be migrated into CM4D, but it must be put inside a very specific shell of start/end code and formatted to use internal references (cm4dDoc), rather than external (QaDoc). Only VB.net or C# are supported, so if you have code in any other language it will need to be migrated accordingly.

    Scripts can be executed:
    • On Document Open (Document Defaults)
    • On ‘Execute’ of an Annotation (Annot Properties)
    • On Demand (Script Selector Dialog)

    External .Net Assemblies can be called in CM4D, including global or private assemblies, and made available to your script writers inside CM4D, giving your users access to the powerful programming capability of the Microsoft .Net Framework. Which Assemblies are made available is determined by user(s) with the ‘Script Administrator’ privilege.

    CM4D does not provide a debug environment for scripts. You may develop your scripts in an external application (requires an API license). When you are done, migrate the code into CM4D. The only ‘safety’ mechanism provided in CM4D is a Timeout function that can be set on each script. This will stop a script after a designated time in order to avoid potential problems, such as infinite loops.

    A full list of CM4D API Methods is available in the ATS CM4D help file. External use of the CM4D API requires an API License and the API Site Database Privilege.

    Managed Document Selector

    The default behavior of the Managed Document Selector (added in v20.0) has been modified. When the Managed Document Selector is opened, the Site tab will be activated. If the Site tab is not configured in the settings, then the first tab will be displayed. The default site for the current user will be selected by default.

    Verify Document Exists - Delete Invalid Managed Document(s)

    A “Verify Document Exists” button has been added to the Managed Document Selector, which confirms that CM4D can find the selected document in the saved directory. This saves on time, as you will not need to attempt to load a document over a network before finding out that it no longer exists.

    If the managed document no longer exists, you are given the option to remove that document reference from the Site database.

    Detect DataSmith Batch Translator Changes

    Changes to DataSmith translator (*.4Datasmith) files that are used by DataSmithBatch will now be detected the next time it is used for processing a job. Previously, a restart of the Batch service was required before any changes would be detected. This change will greatly reduce the amount of IT support required when changes are made to translators.

    v20.2.0

    Allow Tables to Span Multiple Sheets

    For Table annotation, the number of Columns can now be set, as previously only the number of Rows could be selected. When working with tables that contain a large number of columns, by selecting which columns appear on a sheet, you can create a table of information that spans multiple sheets. For example, Sheet 1 could display columns 1 through 10, Sheet 2 could display columns 11 through 20, and so on.

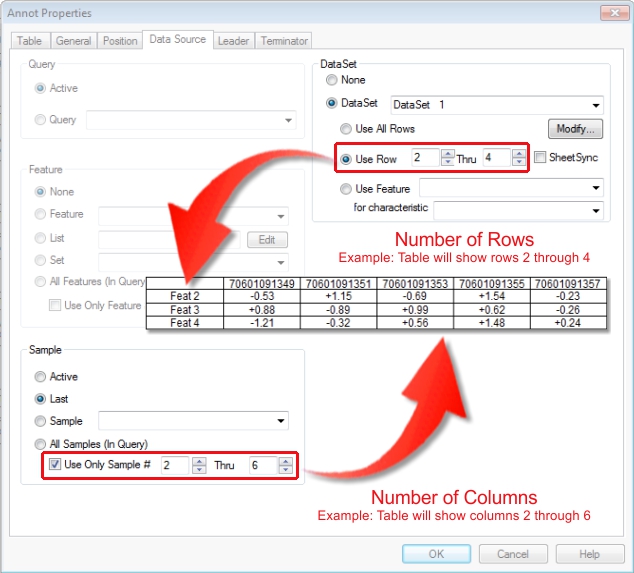

    To select the number of columns in a table:
    1. Right-click on a table annotation and select Properties.
    2. Go to the DataSource tab.
    3. In the Samples section, select the check box Use Only Sample #.
    4. Set the Sample # fields to the column numbers you want to include in the table.

    TableSpan
    To load a set number of Last Samples, enter negative numbers in the Sample # fields. For example, ‘-1’ means the last Sample, so setting this property to ’Use Only Sample # -5 Thru -1’ would mean the last five Samples would be loaded in the five table columns.

    Allow Annot off the Sheet

    A new Document Default option has been added which allows annotation to be placed off of the sheet (on the green area). When this option is off, any annotation moved off of the sheet snap back to the nearest sheet margin.
    This option, which is off by default to support backwards compatibility, can also be set in the [defaults] section of the Cm4d.ini file: allow_annot_off_sheet=0

    Sift Rule Variables

    A new variable, ~siftrule~, has been added that reports various summary statistics on data in a DataSet that is associated with a particular Sift Rule. New variables available:

    ~siftrule,[ ],boxhi~

    ~siftrule,[ ],q1~

    ~siftrule,[ ],range~

    ~siftrule,[ ],boxlo~

    ~siftrule,[ ],q3~

    ~siftrule,[ ],rowcount~

    ~siftrule,[ ],hi~

    ~siftrule,[ ],mean~

    ~siftrule,[ ],sum~

    ~siftrule,[ ],lo~

    ~siftrule,[ ],median~

    ~siftrule,[ ],totalcount~

    ~siftrule,[ ],iqr~

    ~siftrule,[ ],nospeccount~

    ~siftrule,[ ],conformcount~

    ~siftrule,[ ],invalidcount~

    ~siftrule,[ ],nospeccount2~

    ~siftrule,[ ],nonconformcount~

    ~siftrule,[ ],lif~

    ~siftrule,[ ],outofspeccount~

    ~siftrule,[ ],percentconform~

    ~siftrule,[ ],uif~

    ~siftrule,[ ],outofspeccount2~

    ~siftrule,[ ],percentnonconform~

    ~siftrule,[ ],lof~

    ~siftrule,[ ],percentinvalid~

    ~siftrule,[ ],uof~

    ~siftrule,[ ],percentvalid~


    When a Sift Rule variable is used with two parameters, the calculation is done only for the Sift Rule that is specified by the first parameter. The second parameter is the statistic that will be calculated on the data included in the Sift Rule specified by the first parameter.
    The first parameter can be specified using one of the following options:
    • Number of Sift Rule - the integer that indicates the position of Sift Rule in the list, as it appears in the Multiple Sift Rules dialog.
    • Label of Sift Rule - label of Sift Rule.

    Example using Number: ~siftrule,3,mean~

    Example using Label: ~siftrule,Surf H/L,mean~

    DataStack Evaluation - SiftRule Variable

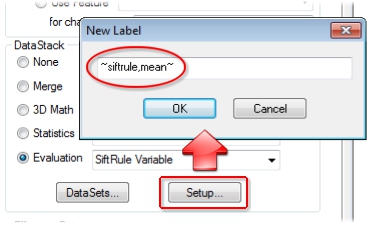

    A new DataStack type has been added: Evaluation/SiftRule Variable. This evaluation will process the defined variable string against all SiftRules within the stacked DataSets. When the ~siftrule~ variable is used with this DataStack type, the first parameter is not used.
    MultiSiftVar2

    The resulting DataStack has a row for each DataSet in the stack. The label of the row is the label of the DataSet. There will be one column for each SiftRule. If more than one DataSet is stacked, then the number of columns will be determined by the DataSet with the most SiftRules defined. The label of the column is set to the label of the SiftRule.

    Example Table for a DataStack with Evaluation/SiftRule Variable siftrule,mean~.
    MultiSiftVar3

    If more than one DataSet is stacked, the column labels will only appear if all of the Sift Rules in that column have the same Sift Rule label. If the Sift Rule labels are different, the column header will remain empty.
    MultiSiftVar4

    Multi-SiftRules for Sticky Reports

    Support for saving Multiple Sift Rule settings has been added to Sticky Reports.

    v20.1.1

    Annot DataSource Fix

    Functionality that previously existed in the Report Tweak Analysis dialog is now moved to its own dialog, called Annot DataSource Fix. Using this dialog, alternate features are found based on two search parameters:

    1. Routine label – the Feature has the same label, but is in a different Routine.
    2. Feature labels - the Feature is set to use a label that begins or ends with 'L' or 'R', and a new Feature has a label that begins or ends with the other. For example, if the current Feature label begins with an 'L', then we will look for a new Feature that has a label that begins with an 'R'.

This functionality is particularly useful when it is paired with the Mirror Annot operation to make building reports for Left and Right handed parts easier. In a report that is set up to use Left Handed features, you can use the Annot DataSource Fix dialog to replace all Left features with the corresponding Right Handed features.

AnnotDSFix1

To access this dialog:

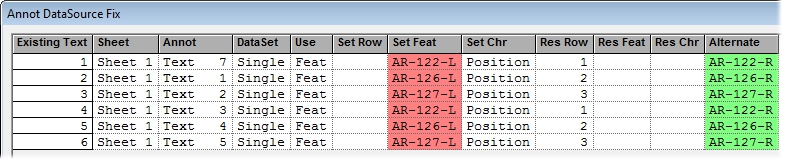

1. Select Document > Miscellaneous > Annot DataSource Fix.
AnnotDSFix2

2. Click the Fix button.

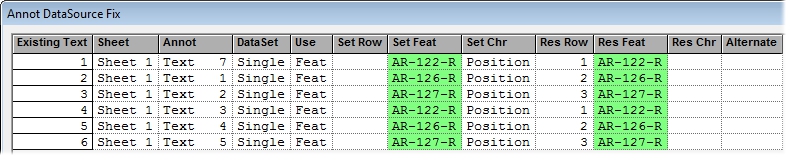

3. The Set Features are replaced by the Alternate Features:
AnnotDSFix3

4. Click Close to return to the report.
5. Note the previously empty annotation are now populated with the corresponding Right Hand features.

AnnotDSFix4

The Annot DataSource Fix option is only available for annotation that have a DataSource that selects the Feature by label, not Row number. To change the annotation from Row number to Feature, click the Convert button.

AnnotDSFix5

DataStack Evaluation – Summarize by Sample Filter

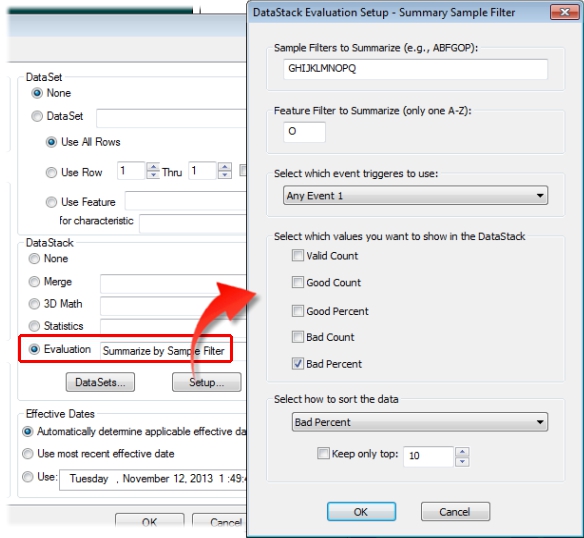

A new Evaluation type has been added to DataStacks: Summarize by Sample Filter. This evaluation summarizes stacked data based on the Sample Filters used. The Setup for this evaluation includes one or more Sample Filters (A-Z), one Feature Filter (optional), event triggers, values based on tolerance, and sorting.
SumSampFilt1

Please note: The Feature Filter is optional. If a Feature Filter is not specified, then all 'columns', or Sample Filters, are accumulated.

Summary Sample Filter Report

A new report building tool has been added to CM4D to be used in conjunction with the Summary of Sample Filters DataStack Evaluation. This report will display a summary analysis of a part as it relates to the Sample filters assigned. Sample Filters will be laid out across the sheet in columns, with each Sample Filter value being a row in that column.

If a Feature Filter is designated in the DataStack Evaluation setup, then only samples that use that Feature filter will used in the summary report. If no Feature filter is indicated, then all samples will be used in the report.

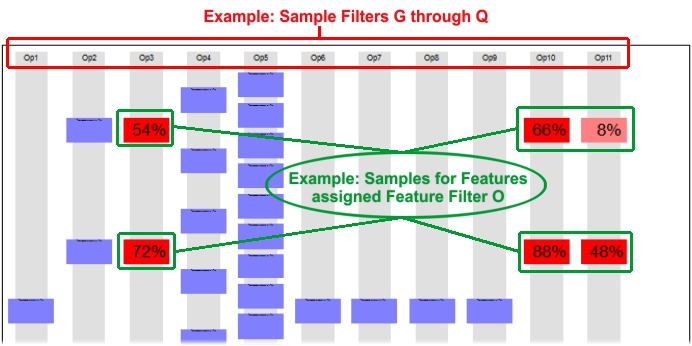

SumSampFilt2

One use case for this type of report may be of a manufactured part that progresses through a number of tasks, where each task may be performed by any one of a number of machines. If each task is assigned a Sample Filter, and each machine is designated as a value for that Sample filter, then CM4D can use that data to track the progress of the part through the system. The Summary Sample Filter Report provides information about each machine in the process, giving you a percentage of parts made by that machine that are within tolerance specifications.

To build a Sample Filter Summary report:

1. Create one annotation, which will be used as the template for creating all the other annotation needed to create the report.
2. Assign a DataSource to the annotation that uses the new evaluation type Summarize by Sample Filter.
3. Place it so that there is enough space above and below, as well as to the right, to accommodate all of the resulting annotation. Don’t worry if you don’t know how big your report will be, you can always re-run the report using any one of the annotation.
4. Select the annotation.
5. From the Document menu, select Miscellaneous > SumSampFiltReport.
6. When the Done message appears, click OK.

v20.1.0

Sticky Reports

A new mechanism has been added to CM4D Interactive that allows you to make small adjustments to your standard reports and save the modified arrangement for recall in a future session of CM4Di. These saved custom reports are called Sticky Reports.

Similar to modifying templates in CM4D Classic, Sticky Reports greatly increase the flexibility of the CM4Di’s dynamic reporting. Using Sticky Reports you can select different chart types, modify report layouts, change view orientations, and save how the data is loaded.

v20.0.0

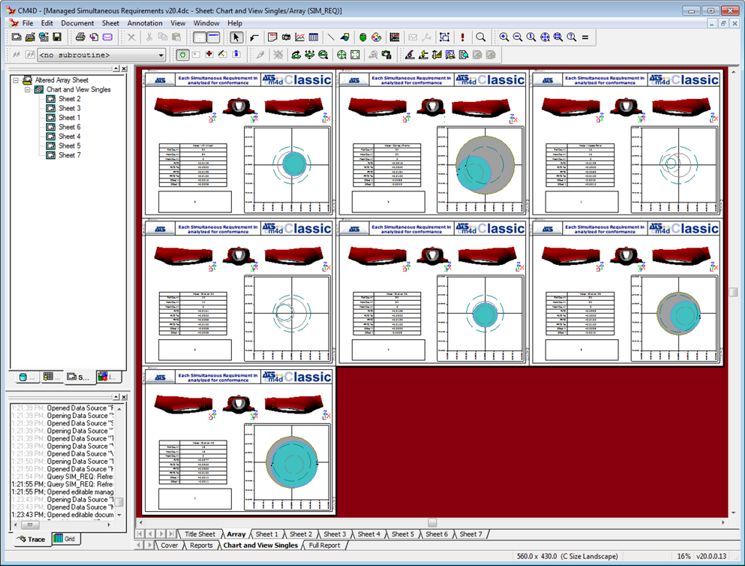

Altered Array Sheet

Functionality has been added that allows you to temporarily modify the appearance and arrangement of sheets within the Array Sheet. This may be particularly useful when organizing data throughout a SheetSet with a large number of Sheets.

To use this functionality, toggle ReportTweak mode and begin altering the Array Sheet:
  • Hide/Show Sheets - Sheets can be hidden while working with the Altered Array Sheet. Hidden sheets will be indicated by glyphs in the sheet margins. The Hide/Show options can also be accessed by right-clicking on a Sheet label in the Sheets Tree.
  • Move Sheets - Drag a sheet and drop a sheet into a new position within the Array sheet. An indicator cursor will show where the sheet will be moved.


Altered Array Sheet
When changes have been made to the Array Sheet, the desktop background in the Display area of CM4D will turn red. Once ReportTweak mode is turned off, any alterations to the appearance of the SheetSet will revert to the last saved state, and the desktop will turn back to green. If you print your report while viewing an altered Array Sheet, the report will be printed in its original state.

E-Mail Sheet

Functionality has been added to print the current report to a PDF and attach is to an e-mail. As with standard CM4D printing, whatever is in your main display region will be printed (view the Array Sheet to print entire report).
  • E-mail Sheet may be accessed either from the Print menu, or using the e-mail button.
  • An e-mail client must be installed on the machine that CM4D is running on in order for the e-mail sheet option to work.
  • E-mail Sheet is also available in CM4D Interactive and CM4D Workcell.

This functionality uses a built-in PDF writer. However, this is not used for printing reports via CM4D Scheduler or WTC, so you will still need an alternative PDF writer (such as eDoc PDF Printer) to print your reports.

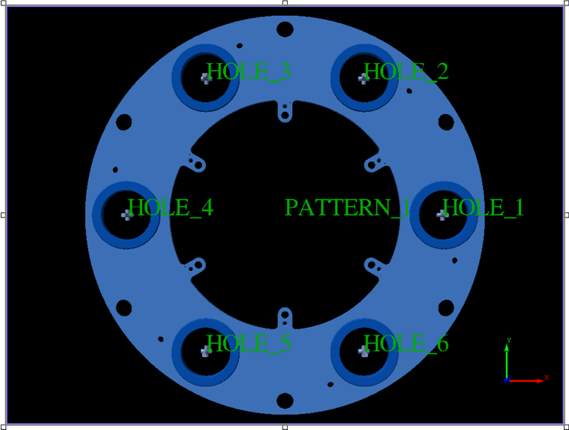

Feature Marker Text

3D Views have been enhanced to display text with the existing feature markers that identify the feature while the View is in Edit Mode. The Marker Text will rotate and scale with the view.

Feature Marker Text
Feature Marker text can be enabled or disabled. To set the properties of the Feature Marker text, use the View Annotation Properties dialog. Feature Marker Text can use variables to resolve the following Feature information:
  • Feature Label
  • Feature Description
  • Feature Alias
  • Feature Sequence
Feature Marker Text will also be displayed in CM4D Interactive, when a View is in Edit Mode, provided Marker Text for that view is enabled in the CM4Di Startup Template.

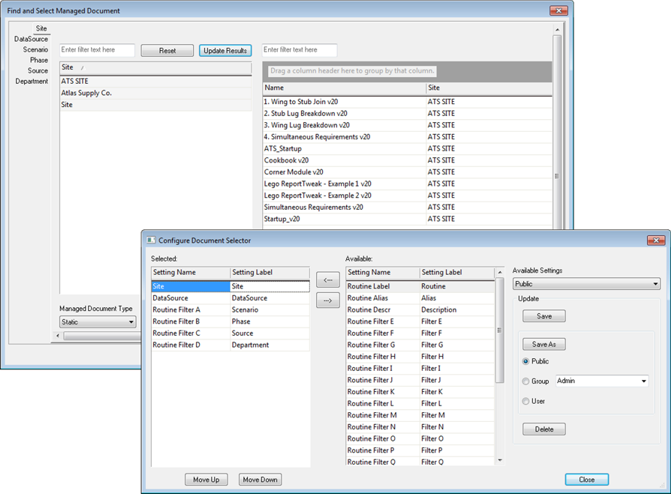

Managed Document Selector

An interface has been added to allow for advanced drilldown and filtering of Managed Documents. Managed Documents may be searched for and sorted by Site, DataSource, Label, Filters, and more.

Managed Document Selector
The first time you select Open Managed Document, you will be prompted to configure the Document Selector. The configuration settings (File > Document Selection Settings) may be saved as Public, for a particular Group, or for the current User.

Mirror Annot

An option has been added to the ReportTweak functionality that allows you to mirror the selected view and all annotation that are connected via leader lines.

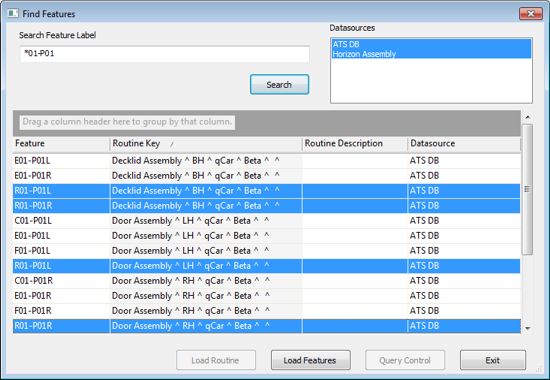

Find Features

New functionality has been added to CM4D Interactive to allow you to find features from multiple Routines without loading any Routines from the Database. To access this dialog, right-click anywhere within the yellow Nav tree and select “Find Features” from the context menu.

Find Features
Features from multiple Routines can only be loaded into the report if they are from the same DataSource.

Restore Workcell

Workcell functionality has been restored in v20.

Managed Document API

API functions have been added to provide access to Managed Document properties.
  • QaSiteConfiguration – ID, Code, Label, UNC Path, etc.
  • QaManagedDocument – Filename, Name, SiteID, etc.
  • QaEventChoice – ID, ManagedDocumentID, etc.
  • QaReportChoice – ID, ManagedDocumentID, SheetLabel, Report Label, etc.
  • QaManagedRoutine – RoutineID, DataSourceID, RoutineLabel, etc.
  • Plus some new QaDoc extensions


Image API

API functions have been added to provide access to 3D views, Document and Routine images.
  • QaImages is a list object that provides access to a Document or Routine image list.
  • QaImage is an object that represents a single Document or Routine 3D view image. All properties can be retrieved and set except for the Label property.

Program Fixes

Program Fixes in ATS CM4D v20.1

CM4D Classic

Corrected item

What it means

Scaling issue from 16.5 to v20

Even with the scaling fix in v20, [customer] is seeing an issue with their Title Block Logo when opening a 16.5 template in v20.

IMR Chart and X-Bar Chart Hover over point

The mouse cursor in an IMR or X-Bar chart does not change or show the value/info in the bottom status bar when hovered over points in the charts.

Fix Scale Results in bad scale value

When using the Fix Scale button on the Annot Properties Dialog the value in the Scale text box gets [corrupted].

2D images do not display

When using the example Housing data, the 2D image does not display.

PCL Viewer Crash

When viewing a change in the PCL Viewer, an error message is displayed. On clicking OK, CM4D crashes.

New Picture button does not work

Cannot create new picture [annotation].

Constructed Features Loop infinite

If a constructed feature has itself as a reference, causes loop.

DataStack with Summarize by Sample Filters causes a crash

DataStack with Summarize by Sample Filters causes a crash if the 'Keep only top' option is turned on, and the set value is higher than the number of resulting columns in the DataStack.

Grouping resolve error for documents migrated to v20

When templates that use group objects are opened in v20, the groups do not resolve without ungrouping first. The groups remain unresolved when the template opens up. Any documents containing grouping that have previously been upgraded to either v16.7 or v20.0 must be re-upgraded using v20.1.


DataSmith

Corrected item

What it means

External Processing field

The field for the External processing is out of place.

Migration of 4JR files to XML format causing instruction formatting issues

When 4jr documents are migrated to 4jx or 4DataSmith file types, certain instruction strings are not being converted correctly, causing incorrect values to be read from data files. A new version of 4jMigrator has been released. Any previously migrated 4jr or 4jx files must be re-migrated in v20.1.


DataSmtih Batch

Corrected item

What it means

DataSmith Batch Access Violation

DataSmith Batch crashes when feeding in a specific datafile. File processes successfully while manually processing via DataSmith, but processing via Batch results in an Access Violation Error.


Other

Corrected item

What it means

Routine Hand it is not reflected in database tables

If you change the Routine Hand it is not reflected in both the SiteRoutine Table & the Plant DB Routine table.


Known Issues

Creating a “Locate Routine” profile for a specific group does not always make the profile available for all members of that group.

Program Fixes in ATS CM4D v20.0

CM4D Classic

Corrected item

What it means

Subroutines do not load

When a Subroutine is created via DataSmith, it does not load into a new CM4D doc.

Annot Table with Show DataSet does not show correct data

When 'Show DataSet' is used in an Annot Table, the Text of the cell is not displayed - only the value. This can happen for various DataStack types, or when using special formatting.

Cannot select Restricted Filters in 64 bit CM4D

Restricted Filters could not be selected when running CM4D in 64-bit.

DataStacks do not retain Event status from sub-DataSets

When building a DataStack, it is not possible to fully evaluate Events as in the sub-DataSets. In particular, with the 'Merge' DataStacks, the Event status from the sub-DataSets should just come through.

Migrated customer documents will not open in 64-Bit CM4D

Opening templates migrated from v15.2.903 in 64-bit CM4D results in crash.


CM4D Interactive

Corrected item

What it means

CM4D Classic launches if Startup document is not found

If the CM4Di Startup document cannot be found, Classic would open. Now, the launch of CM4Di will abort.


CM4D Scheduler

Corrected item

What it means

CM4D creates invalid report file name

Fixed migrated from v17.1: Scheduler DataSources were added in order to fix resolve issues that were occurring when variables were used in report names.







Versions & Development





Windows Server 2012 Certified
ATS CM4D is an award winning solution

Microsoft Partner



ATS on Google+ ATS on LinkedIn ATS on Facebook ATS on Twitter ATS on YouTube
